Hi everyone.

Lot of us know (or have heard) that in cinema and theatre p3 color space is usually used when projecting images to screens.

It is very different from Rec 709 color space. Should i pay much of my attention and spend money for P3>Rec.709 adaption if people anyway can't see it on the screens of their home TVs?

Talking with one of my collabs i heard something quite interesting. He said that much of the color guys all over the world work inside Rec.709 color space because when Rec709 is converted to P3 almost nothing changes for the eyes of the audience because p3s range is much wider than the Rec709s one. What can't be said about P3 to Rec709 converting because it takes much effort to place wide range of P3s in Rec709.

Understanding that this approach is quite wrong, I guess that for many movies this way is viable.

What would you say?

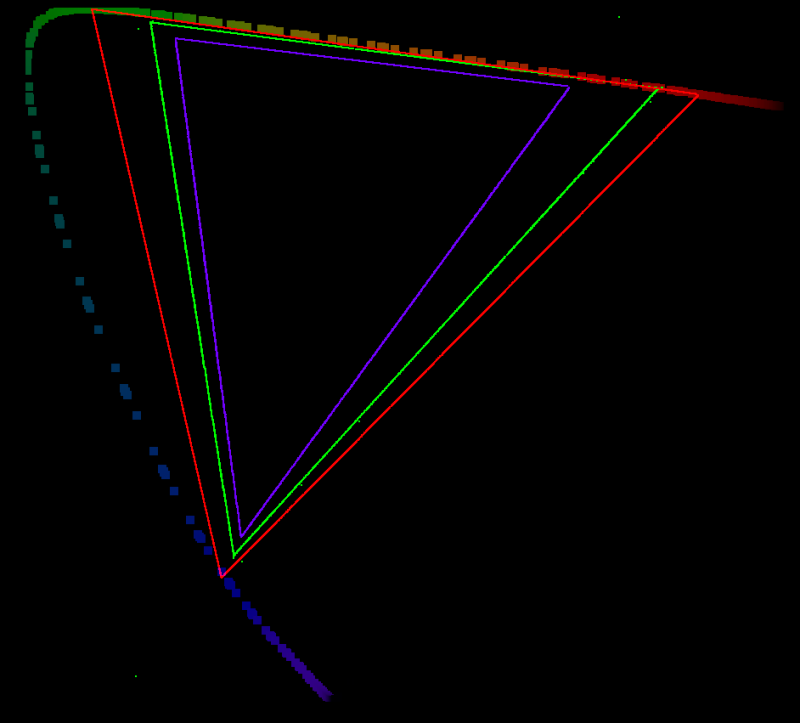

Here is comparative graph of the color spaces.



  • Like 5
Link to comment
Share on other sites

Great insight Daniele, and nice to see you here!

Reviewing the final grade in a proper grading theater is important, and especially today when delivering specialized versions like for IMAX etc. And don't forget, there are many other reasons to run the movie through a large screen as well.

Edited by Abby Bader
  • Like 3
Link to comment
Share on other sites

Contrast measurements are about the dynamic range of the projector.

Sequential contrast is determined by comparing a completely black frame with the maximum brightness in another frame. It describes kind of the the maximum contrast of the device.

Intra-frame contrast in comparison describes the maximum contrast within one frame, which is usually much lower. It is usually measured with a black/white checkerboard pattern or with a small white patch in a mainly black frame. Important to note is that the lower intra-frame performance of DCI compliant projectors is NOT due to an adaptive iris or dynamic light dimming (which mess up images in consumer displays). The reason lies mainly in the imperfection of the projection lens, which lifts the blacks because of flare. We know the effect from camera lenses: If there is a very bright object in the frame, the black level even of technically decent lenses like Master Primes is lifted a lot.

To throw in some numbers, the DCI minimum specs and tolerances for example are:

Sequential contrast:

nominal 2000:1

review rooms (e.g. grading) 1500:1

theatres 1200:1


Intra-frame contrast:

nominal 150:1

review rooms and theatres 100:1


  • Like 5
Link to comment
Share on other sites

If I want to send a film to a festival what should my project settings be in my NLE when dealing with color grading 1080p 14-bit cinemaDNG footage in After effects? i.e. If I have understood this the working space I must select is P3 DCI gamma 2.6 and depth at 32bpc? Or do I keep my working space to rec 709 gamma 2.4?

I have openDCP or DCP-o-matric at my disposal for the DCP conversion. Since I cannot directly export to DCP in AE what is the best intermediate format to export to resulting in no quality loss?



Link to comment
Share on other sites

Ask the festival for their specifications. Normally you can deliver DNxHR/ProRes as their setup isn't neccessarily professionalized enough to receive DCP's and treat the signal the way it should. Most cinemas today even create a hybrid 5.1 from stereo tracks. The digital age is evolving, not neccessarily for the best.

Edited by Tom Evans
Link to comment
Share on other sites

That's a completely different discussion and a complicated topic, but if you don't have an established P3 color workflow with proper P3 monitoring you don't need to think about these things at all.

Link to comment
Share on other sites
On 11/2/2016 at 12:49 PM, Margus Voll said:

Point is that you can get REC709 perfectly calibrated on reasonable price and work like this and then later when doing DCP converting it perfectly you get accurate results comparing with cheap monitor not doing accurate P3.

You could work on P3 with projection but i would say you need to buy "cheap" projection starting from 20 to 30 thousand € or USD. Not very feasible for many so REC 709 workflow is used. If you have budget for good projection calibration and such then sure go P3 if not then good monitor like FSI is my suggestion.

I do all my features on 709 displays and it is perfect in cinema.

If I am wrong... P3 in 2.6 gamma and rec709 in 2.4..when you grade in rec709 and project in theaters how its look as same as grade.. I think it would be  gamma issue

Link to comment
Share on other sites
On 11/12/2016 at 2:50 AM, Nicolas Hanson said:

You could always work r709 color space and do the final adjustments in a p3 studio / theatre before final delivery.

If timeline color space in arri and output rec 709 ...if iam grading in with luts rec 709 is possible to do trim pass in dci p3.....after rec 709  changing the luts rec 709 to dci p3 or direct CST rec to 2.4 ,dci p3 to 2.6..

Link to comment
Share on other sites
